Tormek Turning Tool Setter Jig

TTS-100

Regular price$55.00
/
GST included. Shipping calculated at checkout.
  • $14.95 Shipping Australia Wide.
  • International Shipping calculated at checkout.

  • In stock, ready to ship
  • Stock Incoming

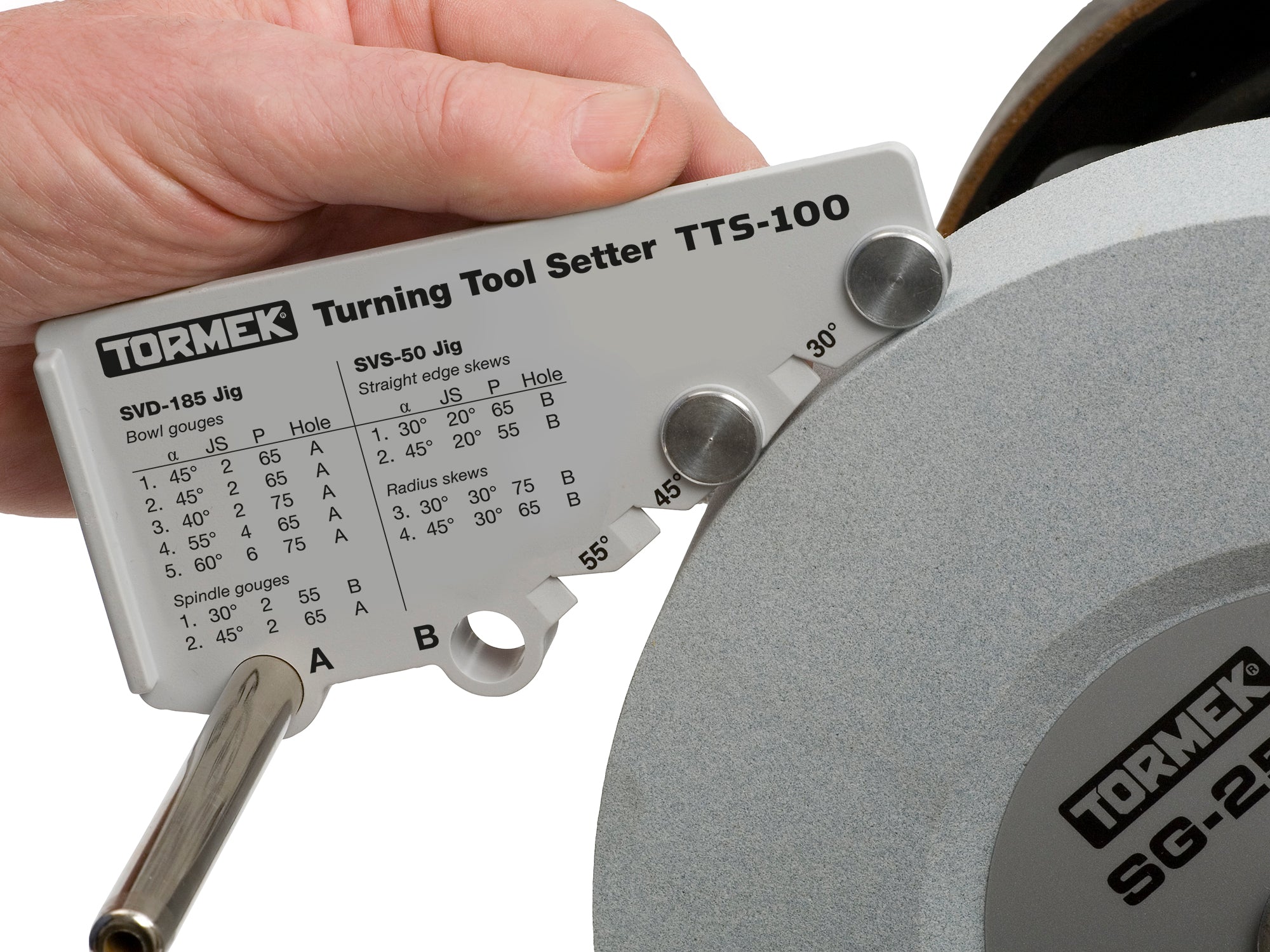

The TTS-100 Turning Tool Setter allows for efficient sharpening of a variety of woodturning tools, ensuring precise replication of edge shape and angle within seconds. This includes bowl gouges, profile gouges, and flat and oval woodturning chisels, both with straight and rounded edges. It is specifically designed for use with the SVD-186 R Gouge Jig and the SVS-50 Multi Jig, providing optimal results.

Why TTS-100 Turning Tool Setter?

  • Easy setting for sharpening woodturning tools.
  • Enables precise repeatability when sharpening, time after time.
  • Easy to use.
  • Used with the SVD-186 R Gouge Jig and SVS-50 Multi Jig.
  • Works with the Tormek T-8, Tormek T-4 and older models

Exact repeatability

Achieve consistent sharpening angles for most woodturning tools with the TTS-100 Turning Tool Setter. This expert tool quickly replicates your profiles, making the sharpening process significantly more efficient.

The TTS-100 Turning Tool Setter remains unaffected by the size of the grinding wheel, ensuring a consistent bevel angle regardless of any wear over time. This feature allows for the use of the tool setter on the honing wheel while setting the bevel angle.

Easy setup with profile labels

The jig setting, tool protrusion, and distance to the grinding wheel are three critical variables that impact the shape of a woodturning gouge or chisel. The TTS-100 Turning Tool Setter enables precise and consistent adjustments for achieving desired tool shape and bevel angle.

Utilize the included PL-01 Profile Labels to efficiently replicate the angle and profile of your tool, allowing you to easily sharpen it in the future. Along with this, the product comes with a comprehensive guide on frequently used profiles and detailed instructions for setting up the TTS-100 Turning Tool Setter to achieve these profiles.

One profile per tool

To fully utilize the TTS-100 Turning Tool Setter, it is crucial to maintain consistency with your chosen tool profile and avoid switching between shapes. This allows for efficient sharpening without excessive grinding. If a different shape is required, it is recommended to have multiple tools with individual shapes, reducing downtime for shaping and sharpening while increasing productivity and prolonging tool longevity.

Label your tools using the provided PL-01 Profile Labels from the TTS-100 Turning Tool Setter. Remember to record your settings for each tool on the labels and attach them to the ferrule. This will keep the necessary information easily accessible during sharpening.

Reshaping woodturning tools on a bench grinder

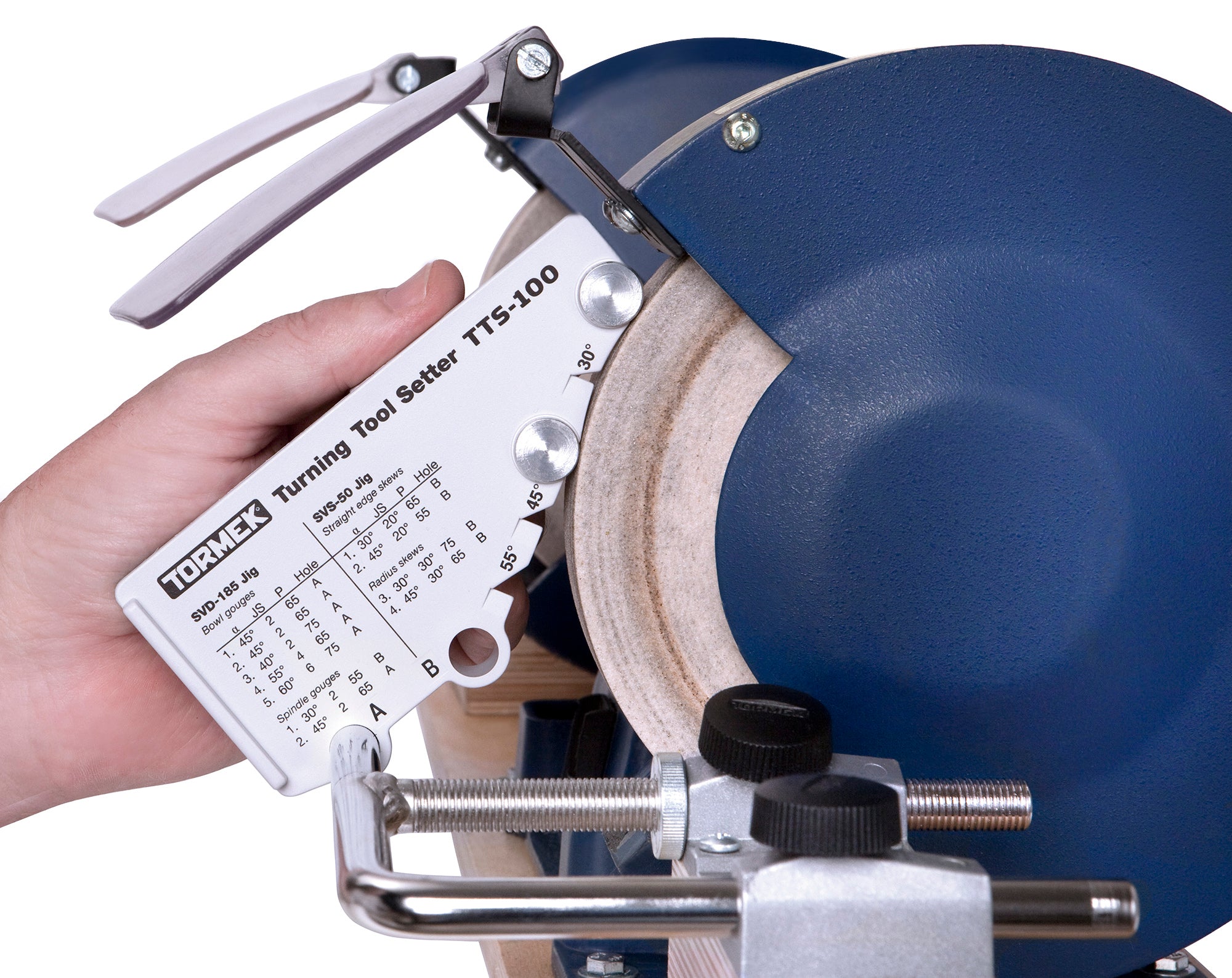

The BGM-100 Bench Grinder Mounting Set allows for efficient grinding of woodturning tools on a bench grinder, saving time when drastic profile changes or material removal is necessary. Once mounted, the TTS-100 Turning Tool Setter can be used to easily transfer the grinding settings to a Tormek for final fine sharpening.

Weight

Shipping weight 0.14 kg (0.31 lb)

Colour

Gray/black

Material

Plastic

Warranty

2-year warranty
